Gartus LED DARKNESS SENSOR 12V AC/DC Max.36W

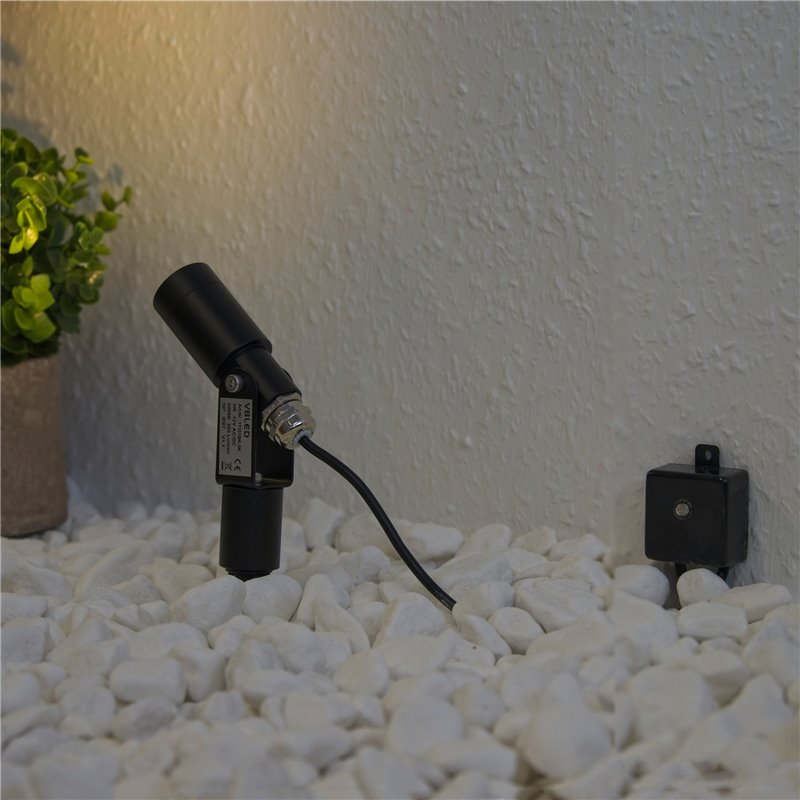

The LED microlight sensor is part of the Gartus system and, due to its compact design, can be inconspicuously integrated into the garden.

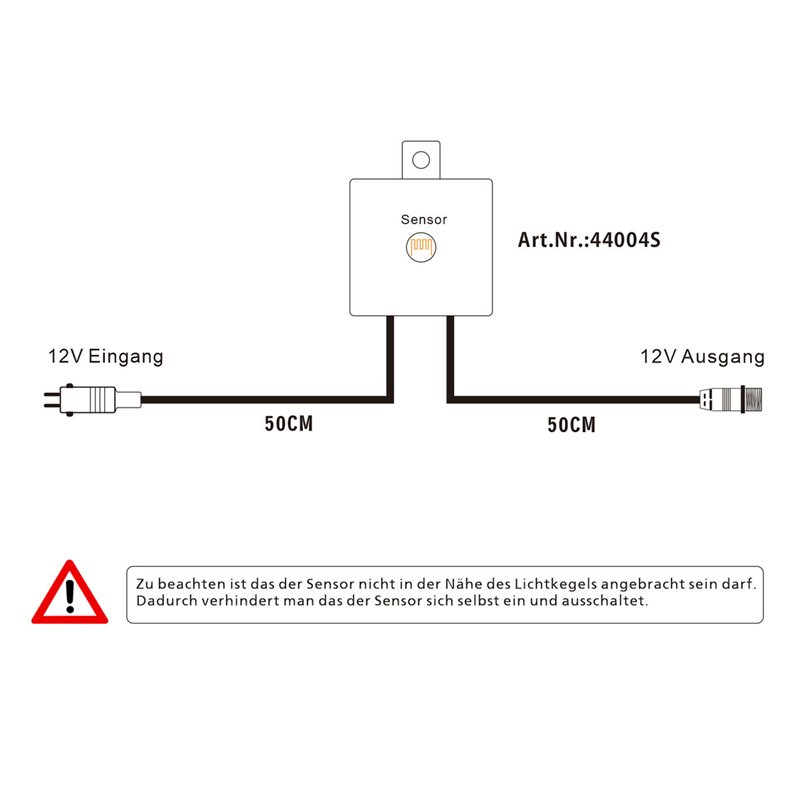

Here is a PDF drawing that shows you how the garden light and cable are connected: Gartus Kable Plan

Low power consumption in standby of 0.3 watts, maximum load 36W.

Input and output cable length 50cm each.

The built-in microprocessor chip improves detection accuracy and prevents the light from blinking at dusk.

The twilight sensor allows the lights of your Gartus 12V plug-in system to turn on automatically when the brightness of the environment is lower than 16 lux, and to turn off as soon as the brightness is above 16 lux again. Lamps with a total power of up to 36 W can be controlled by the twilight sensor.

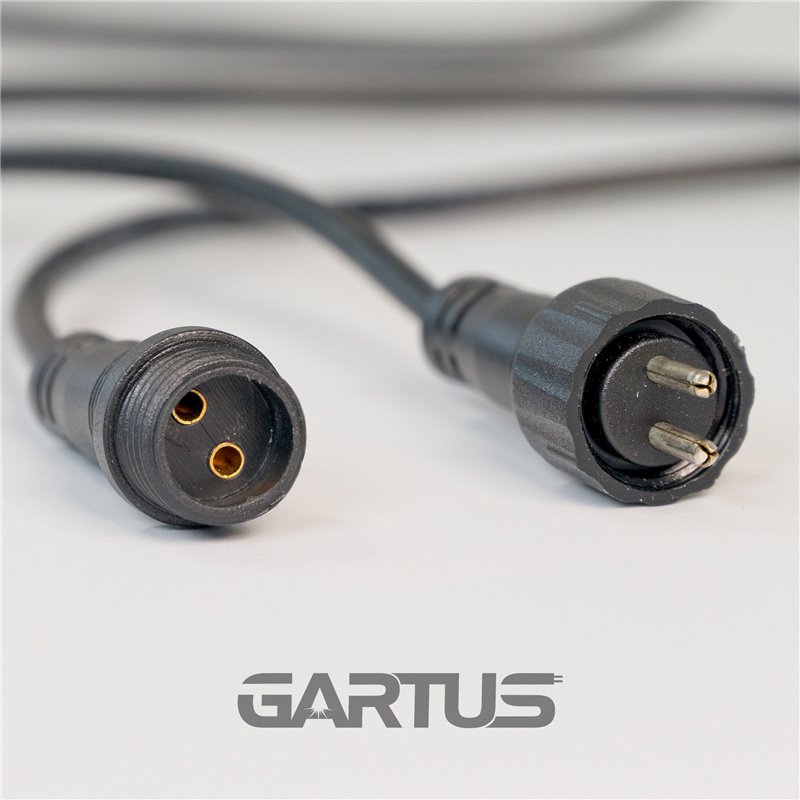

Compatible with the Gartus Plug & Play plug-in system

Attention:
Do not shine a light on the sensor as this may cause it to function improperly.

How to test?

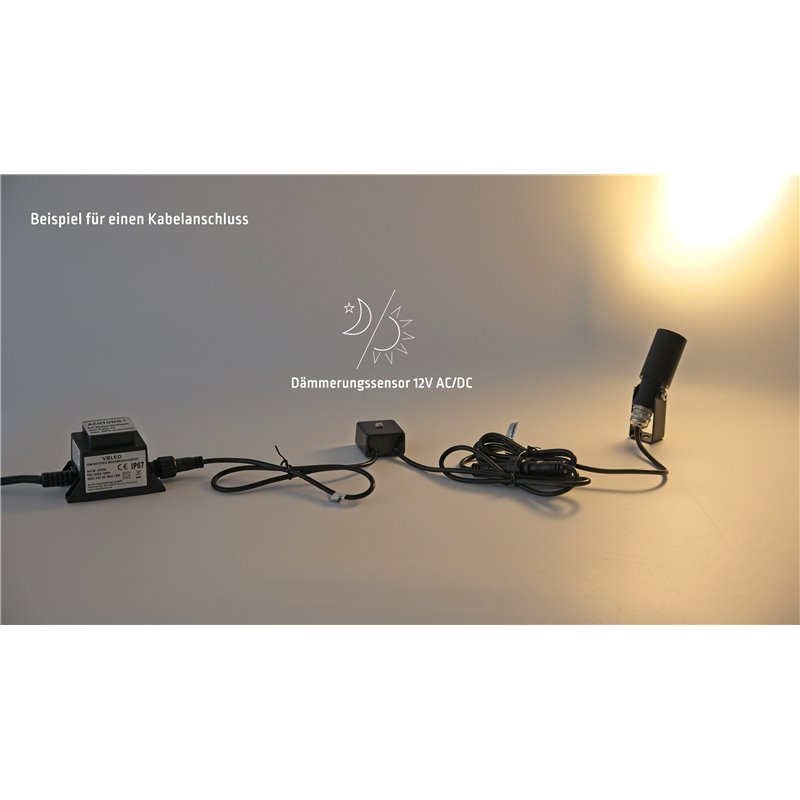

Connect the sensor with 12V power and LED garden light, and move the sensor into darkness for 30 seconds, the light will turn on.
