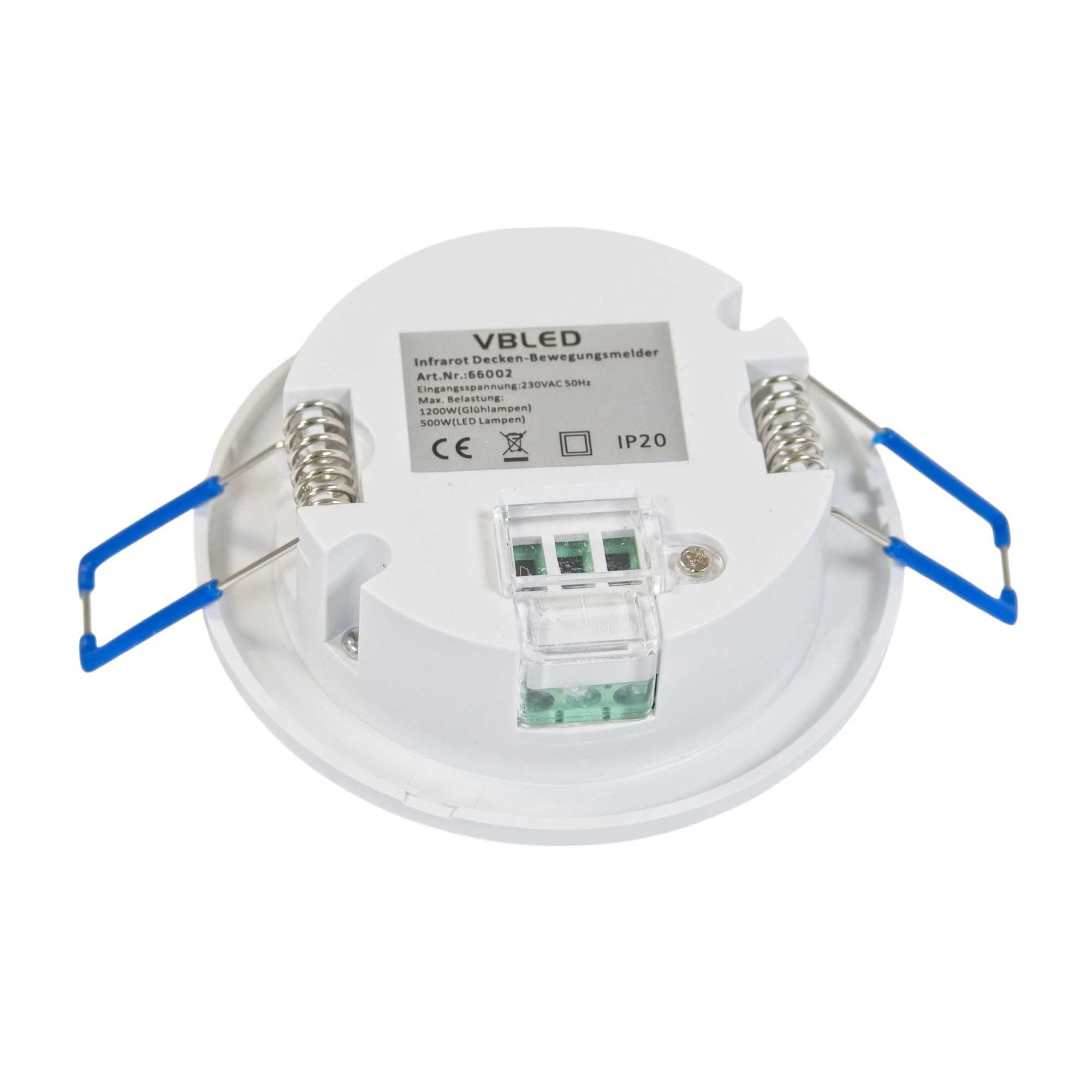

The 360° indoor ceiling motion sensor is designed for both flush and surface mounting, making it ideal for suspended ceilings with limited space. Its compact design allows easy installation with just 30mm installation depth and an included adapter for surface mounting.

• Compact Design: 30mm installation depth, mounting diameter Ø 61mm, total height 37mm with cover, front Ø 80mm.
• Technical Specifications: 3-wire connection, suitable for LEDs 500W, resistive loads 1200W, 230V AC operation.
• Wide Coverage: 360° detection angle, adjustable sensitivity, and detection range of up to 8m.

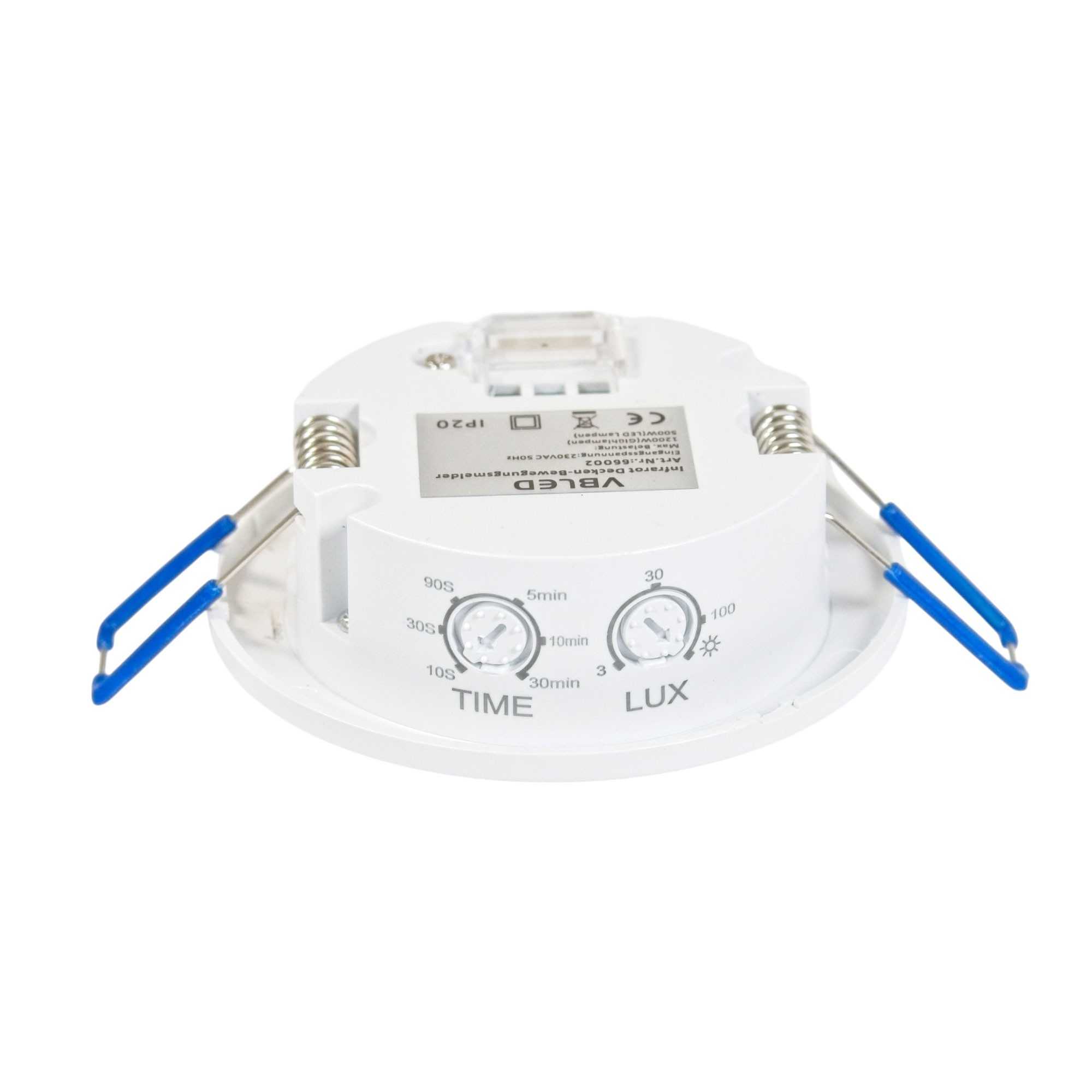

• Adjustable Settings: Switch-on duration from 10 sec to 30 min, adjustable twilight switch threshold.
• Parallel Switching: Can be connected in parallel with other 3-wire motion sensors, perfect for multi-entrance rooms, staircases, offices, and hallways.
• Indoor Use Only: IP20 protection class, recommended installation height: 2.2m - 4m.
