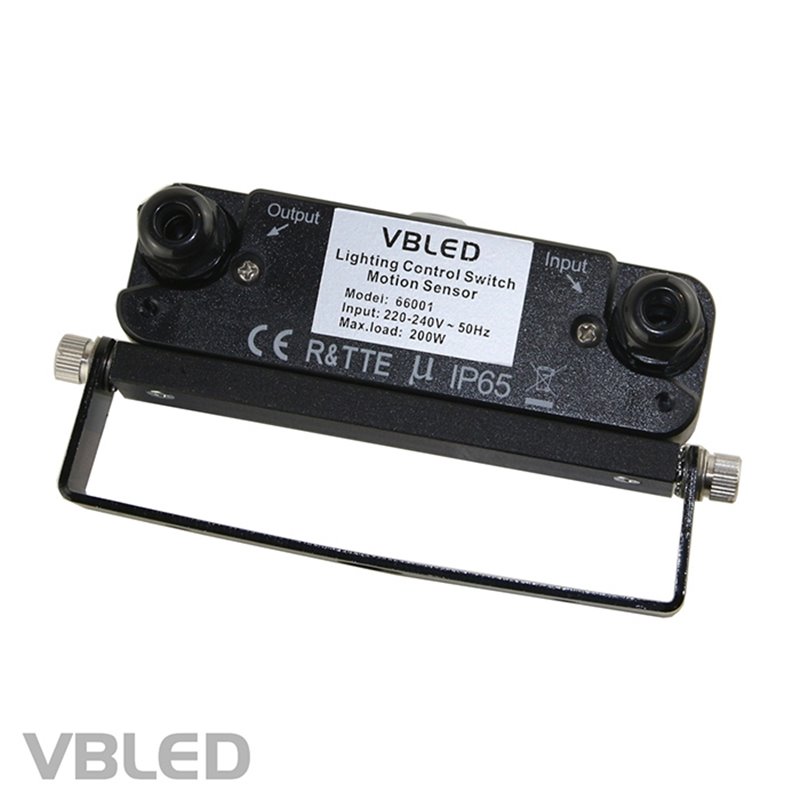

VBLED microwave radar motion detector

Presence detector for indoor and outdoor use with the latest microwave technology and clear advantages over the common PIR (infrared) motion sensors.

• 4 x modes for lighting duration selectable: 20 min, 3 min, 90 seconds & 5 seconds
• 2 x modes for daylight sensor: Adjustable from dusk to dawn (25Lux)
• Change of detection range from 100% to 50% possible. Perfect for switching outdoor lights
• Microwave motion sensor with wall mount, swiveling

With 5.8GHz microwave technology, this product has a clear advantage over the common PIR (infrared) motion sensors, because microwave sensors are not susceptible to interference from wind or rain.
Our motion detectors are preferably used for the outdoor lighting of a house, and thus make a special contribution to energy saving, cost reduction and maximum safety. With its advanced sensor technology and dynamic adjustment capabilities, VBLED's sensor sets the standard in motion detection.


Operating voltage 220~240Vac, 50Hz
Load 200W Max.
Transmission power consumption ≤0.5W(standby)
Detection area Max.(D x H): 10m x 6m

Detection sensitivity 50% / 100%
Daylight sensor 25lux / Disabled
Activation time 5s / 90s / 3min / 20min
Mounting height 6m Max.
Motion detection 0.5~3m/s
Detection angle 120°(wall installation)
360°(ceiling installation)
Operating temperature -35°C~70°
