LED transformer 12V Dimmable Triac Max. 12W Waterproof IP65
    • LED transformer 12V Dimmable Triac Max. 12W Waterproof IP65
    • LED transformer 12V Dimmable Triac Max. 12W Waterproof IP65
    • LED transformer 12V Dimmable Triac Max. 12W Waterproof IP65
    LED transformer 12V Dimmable Triac Max. 12W Waterproof IP65
    LED transformer 12V Dimmable Triac Max. 12W Waterproof IP65 LED transformer 12V Dimmable Triac Max. 12W Waterproof IP65 LED transformer 12V Dimmable Triac Max. 12W Waterproof IP65

    LED transformer 12V Dimmable Triac Max. 12W Waterproof IP65

    CS5-12V12-D3
    18,95 €
    Impuestos incluidos
    15,92 € Impuestos excluidos
    Consulte al servicio de atención al cliente
    Cantidad
    Disponible para pedidos pendientes

    Este producto está actualmente agotado, puede hacer un pedido anticipado, y le informaremos cuando repongamos los productos.
    Calificación:
    (0)


    Secure payments with SSL



    Free shipping from 80€ in DE



    Ready for shipment within 2 working days

    Descripción
    • LED-DRIVER CS5-12V12-D3: Input 220 - 240 V (AC), output 12 V (DC) constant voltage, dimmable, recessed installation.

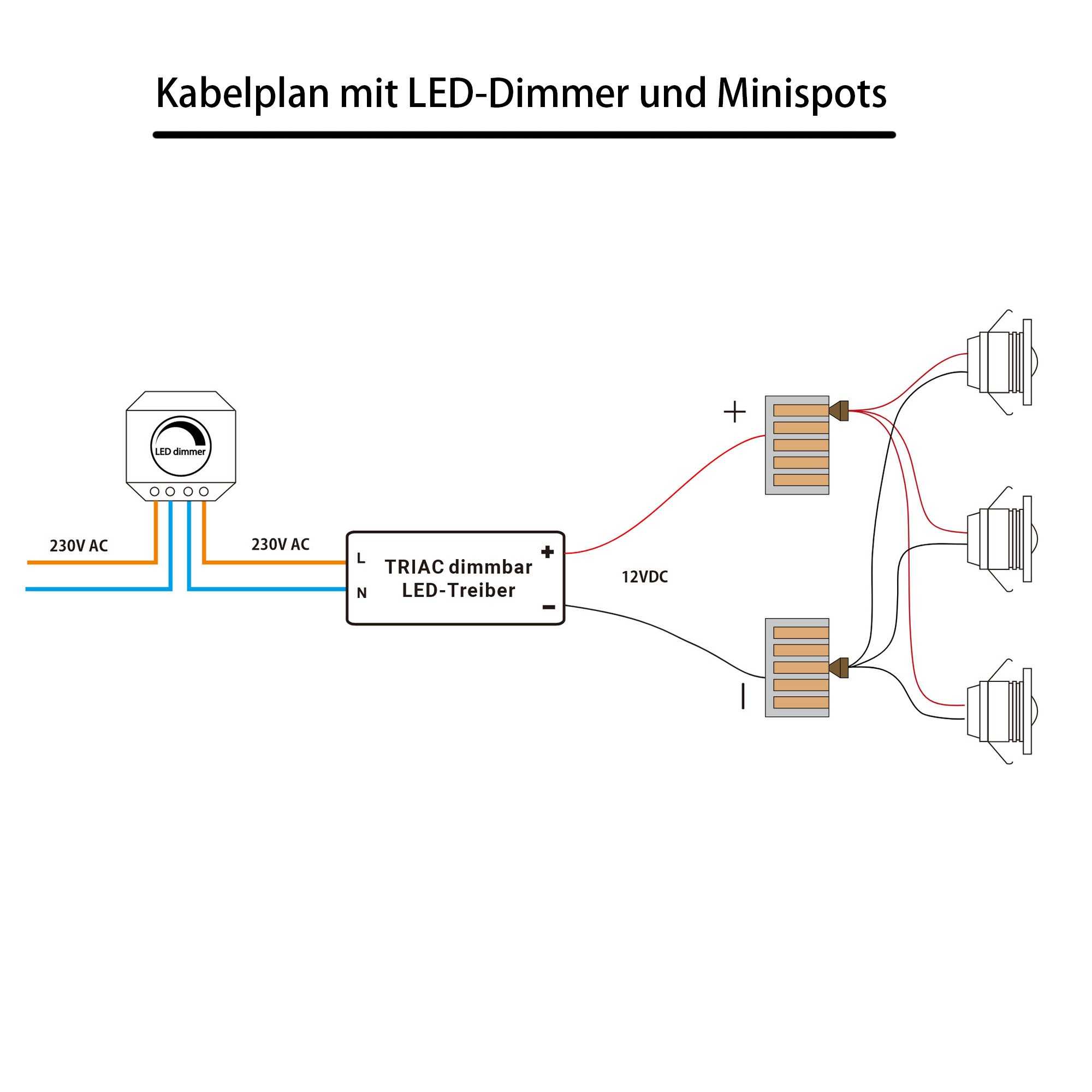

    • DIMMABILITY: TRIAC dimmable (leading & trailing edge), dimming range 1 to 100%. Please use an "R,L,C" dimmer and see also the picture "Compatible Dimmer" for more details.
    • POWER: for LEDs (strips, lamps) from 2.4 W to 12 W, not suitable for lamps with GU5.3 / MR16 or G4 / MR11 sockets, parallel connection possible. We recommend that the application does not exceed 85% of the rated power.

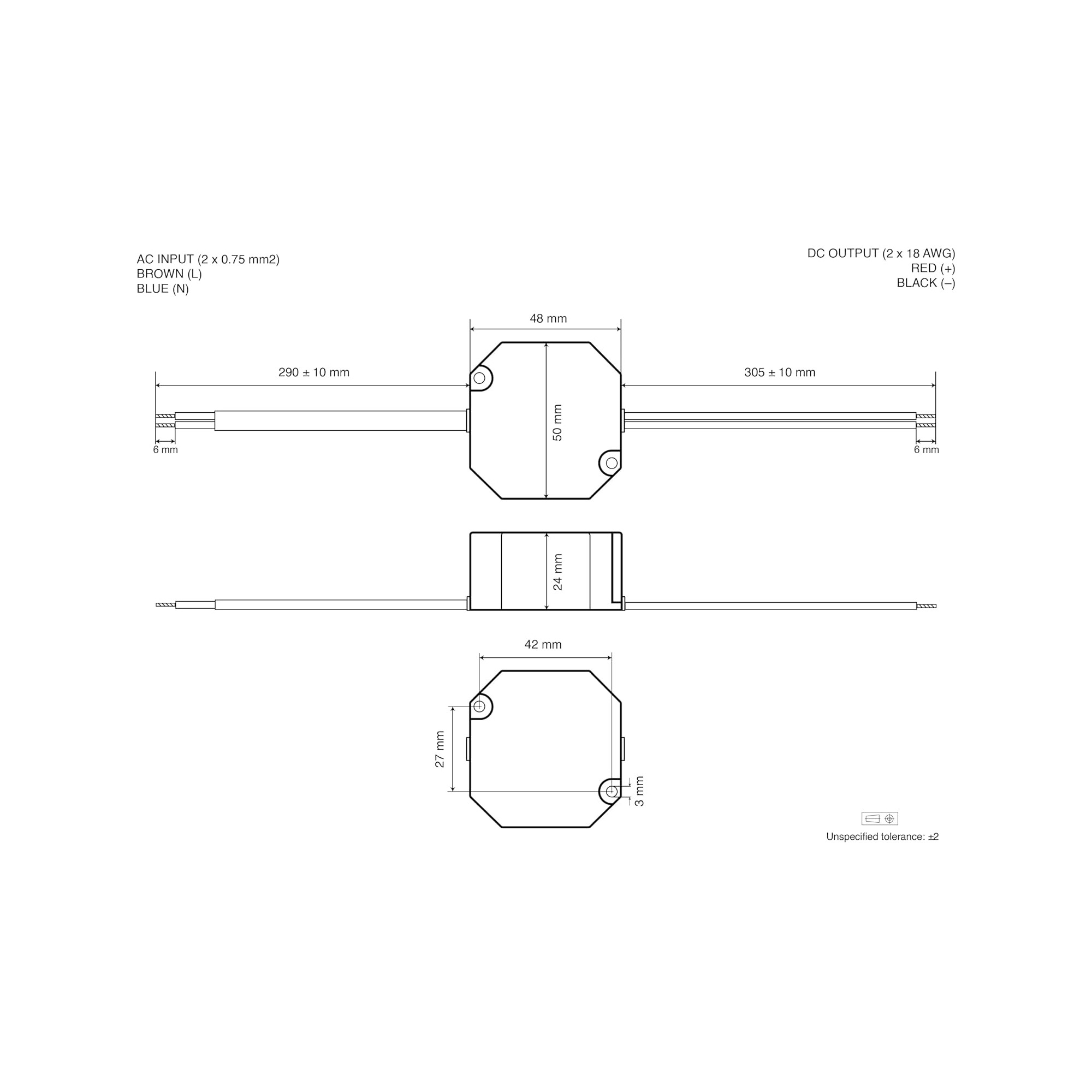

    • MOUNTING: Protection class IP65, dimensions 50 x 48 x 24 mm (L x W x H), ambient temperature (ta) -20 - +70 °C, max. surface temperature (tc) 90 °C. Surface temperature (tc) 90 °C. Installation in furniture, ceiling and wall possible.
    • SAFETY & QUALITY: Overload protection, overvoltage protection, short-circuit protection and overtemperature protection available. Test marks CE, UKCA, MM, service life > 50,000 hours.
    • Compatible with constant voltage 12 VDC LED minispots.
    • Compatible with LED dimmers of articles 43044, 43031, 43009, 43046.
    Detalles del producto
    CS5-12V12-D3

    Ficha técnica

    Potencia
    12W
    Tensión de entrada
    220-240VAC

    220-240 voltios de corriente alterna
    Tensión de salida
    12VDC
    Grado de impermeabilidad IP
    IP65
    Regulable
    Sí
